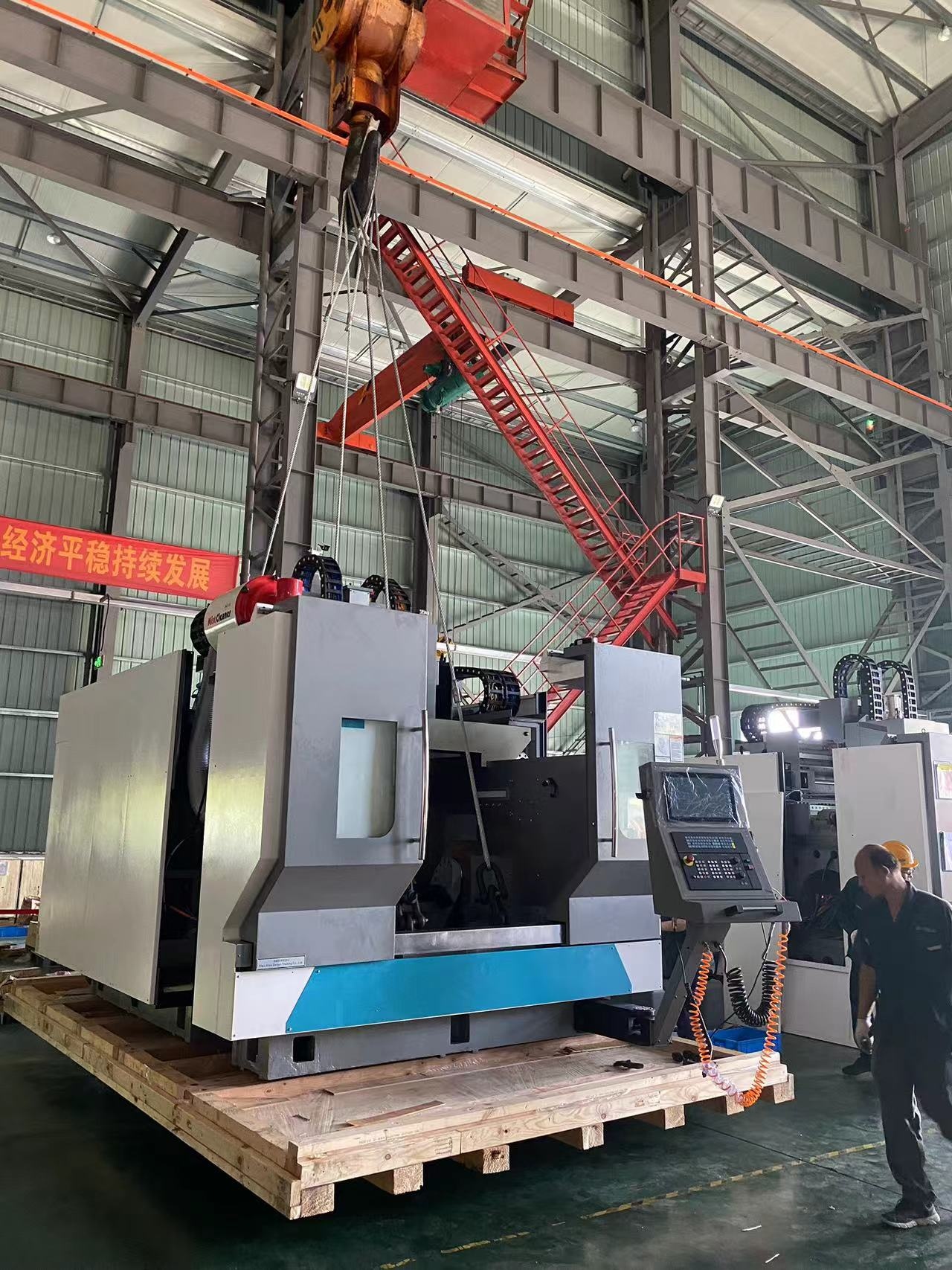

Универсальный фрезерный Пятиосевой обрабатывающий центр NDU800V - Продам в Nanjing
Nanjing Beyond Machinery Co.,Ltd.
Китай, Jiangsu, Nanjing, No.59, Wangqiao Road, Xiongzhou Street, Liuhe District
Детальное описание
MODELS | NDU800V |
TRAVEL | |
X axis | 800mm |
Y axis | 1250mm |
Z axis | 600mm |
A axis rotation angle | ±120° |
C axis rotation angle | 360° |
Spindle end to table surface | 100-700mm |
TABLE | |
Rotary table size | Φ800mm |
Max.table loading | 1200kg |
T slot | 7×14 |
SPINDLE | |
Driving type | Direct type |
Spindle power S1/S6 | 15kW |
Spindle torque S1/S6 | 240Nm |
Spindle speed | 12000rpm |
Tool shank type | BT40 |
FEED | |
X/Y/Z axis fast feed | 36/ 36/ 36m/min |
Max. speed of A axis | 60rpm |
Max. speed of C axis | 90rpm |
Torque of A axis motors | 4400/7800Nm |
Torque of C axis motors | 2200/3900Nm |
ATC | |
Tool number | 32 |
Tool-change type | Cam type |
Max. tool size (Without adjacent tool) | Ф125mm |
Max.tool length | 350mm |
Max.tool weight | 8kg |
ACCURACY | |
Repeated positioning accuracy (X/Y/Z) | ≤0.006mm |
Positioning accuracy (X/Y/Z) | ≤0.008mm |
Repeated positioning accuracy (A/C) | ≤6 sec |
Positioning accuracy (A/C) | ≤12 sec |
Min index unit (A/C) | 0.001° |
OTHERS | |
Overall dimension (LxWxH) | 6000x3000x3600mm |
Net weight | 22000kg |
1. Стандартная Комплектность
l Syntec 220MA-5 CNC controller with 15’’ screen and with Multi-kinematic Chian function
l Spindle motor and driver 11/15kW/69.4/94.6Nm/12000rpm
l X axis motor and driver AM35(5.5kW/35Nm)
l Y axis motor and driver AM35(5.5kW/35Nm)
l Z axis motor and driver AM48 (7.5kW/48Nm)
l A axis motor driver 2 Sets SPD32C1-185,18.5kW
l C axis motor driver SPD32C1-185,18.5kW
l Electrical spindle driver SPD32B1-300,30kW
l ATC motor AM11,2.3 kW/11 Nm
l X/Y/Z axis linear guide: Taiwan HIWIN :RGH55CA (Roller)/RGH65CA (Roller)/RGH45CA (Roller)
l X/Y/Z ball screw: Taiwan HIWIN Y axis 2 sets, diameter 50mm
l X/Y/Z bearing: Japan NSK 35TAC72（P4class）
l A/C rotary table: Taiwan HIWIN diameter 800mm
l Germany Heidenhain round grating scale for A/C axis
l Spindle unit: BT 40
l Oil cooling system
l Hydraulic system and lubrication system
l ATC tool box 32 Tools
l Auto chip conveyor system
l Tool box
l Operational manual
