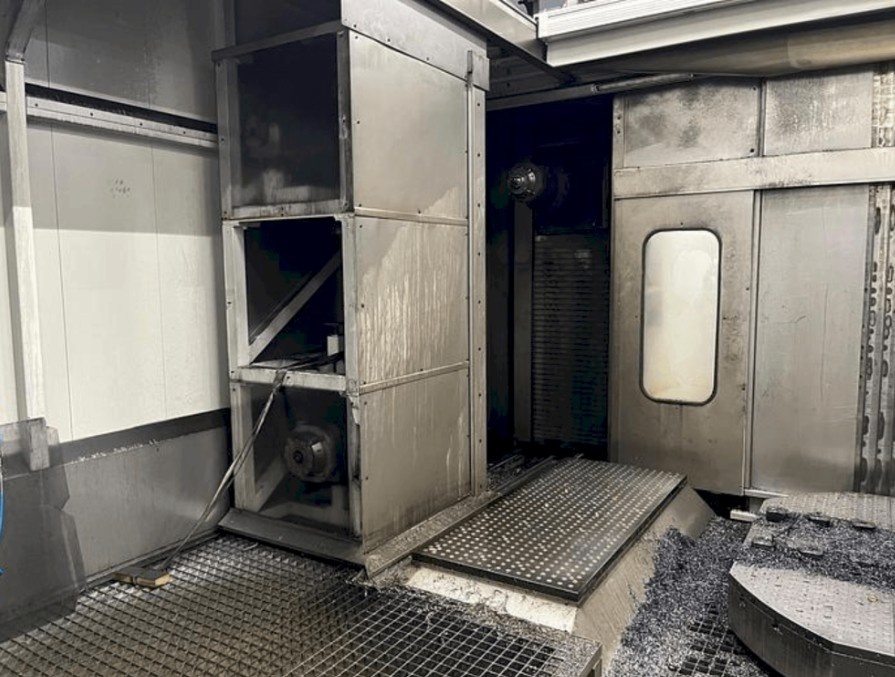

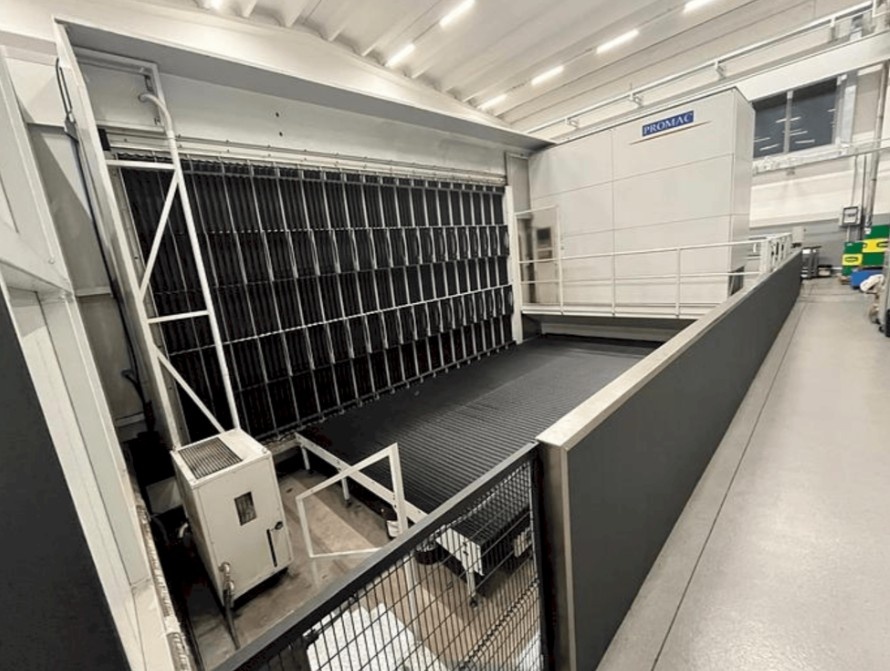

5-осевой Портальный центр PROMAC ETESIAN HMC. A PORTALE Б/У - Продам в Castellalto
Россия, Москва и Московская обл., Москва, г.Москва ул.Индустриальная 22
Детальное описание

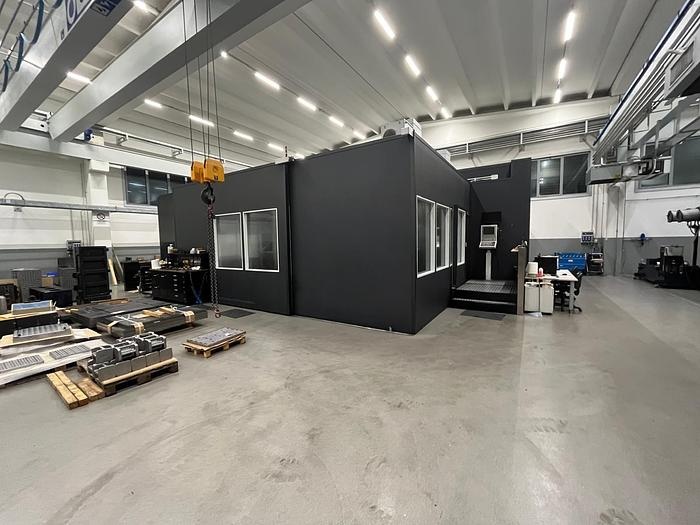

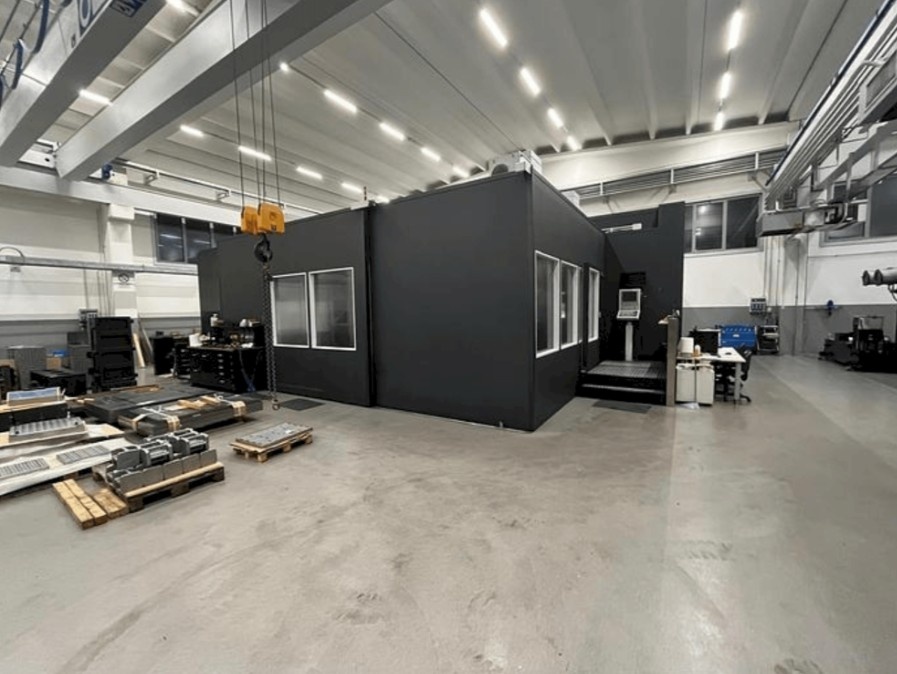

Description 5-AXIS GANTRY CENTER PROMAC ETESIAN HMC. A PORTALE (2010)
5-axis machining center
Travel: X 6,000 mm, Y 2,000 mm, Z 1,200 mm
???? Translating Roto Table 2,000 X 2,000 mm – capacity 25,000 kg
???? N. 02 orthogonal automatic heads: HSK A 100, HSK A 63, + N. 01 Fixed Head HSK A 100
???? Optional: N.02 CNC Heidenhain iTNC 530, High pressure 40 bar, 3-seater head change magazine, Optical lines, 214-seater tool changer
Specifications
Manufacturer PROMAC
Model PROMAC ETESIAN HMC. A PORTALE
Year 2010

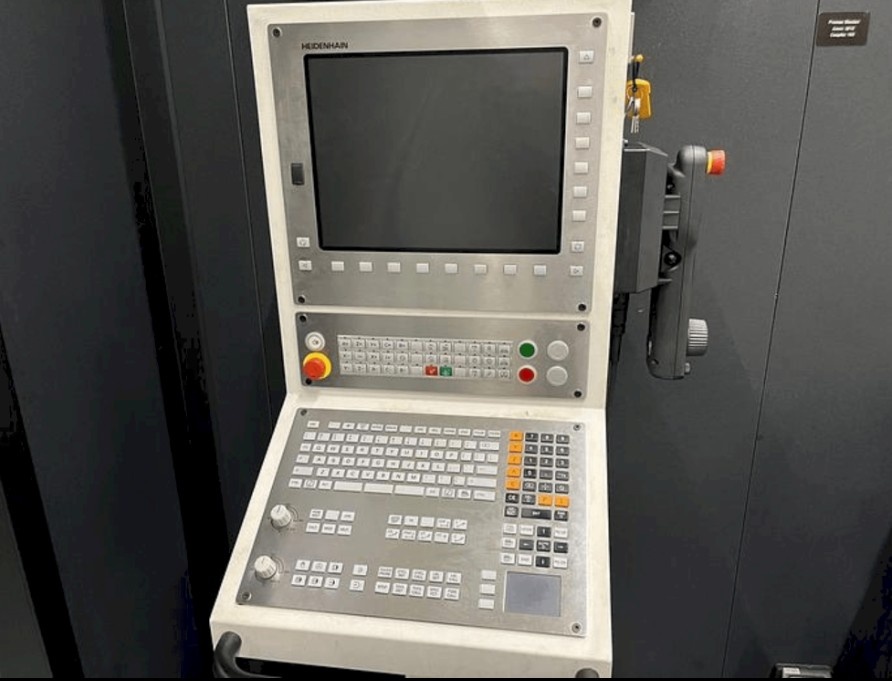

CNC HEIDENHAIN ITNC 530 HSCI
X-axis (travel) 6000
Y-axis (races) 2000
Z-axis (travel) 1200
A-axis (table tilt stroke) +110°/-110°
B-axis (spindle head movement stroke) +110°/-110°
C-axis (table rotation) + 200°/-200°
max dimensions of the workable piece D. 380
Width of the table (board) 2000
Length of the board (table) 2000
Spindle power Kw 45 KW
Spindle speed (main spindle) 6.000/20.000

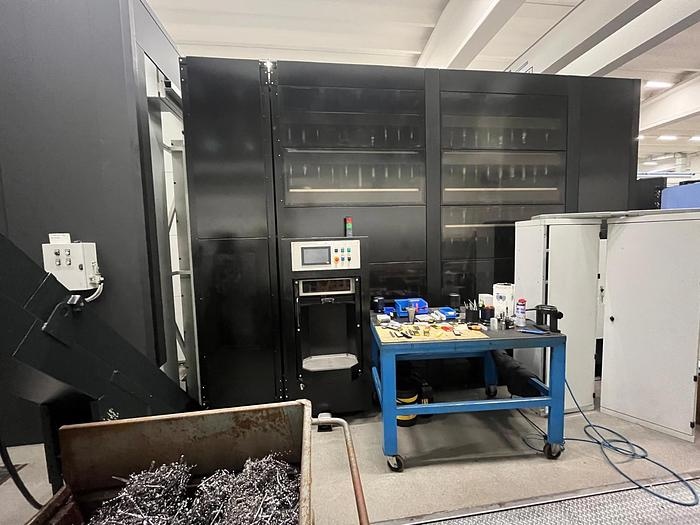

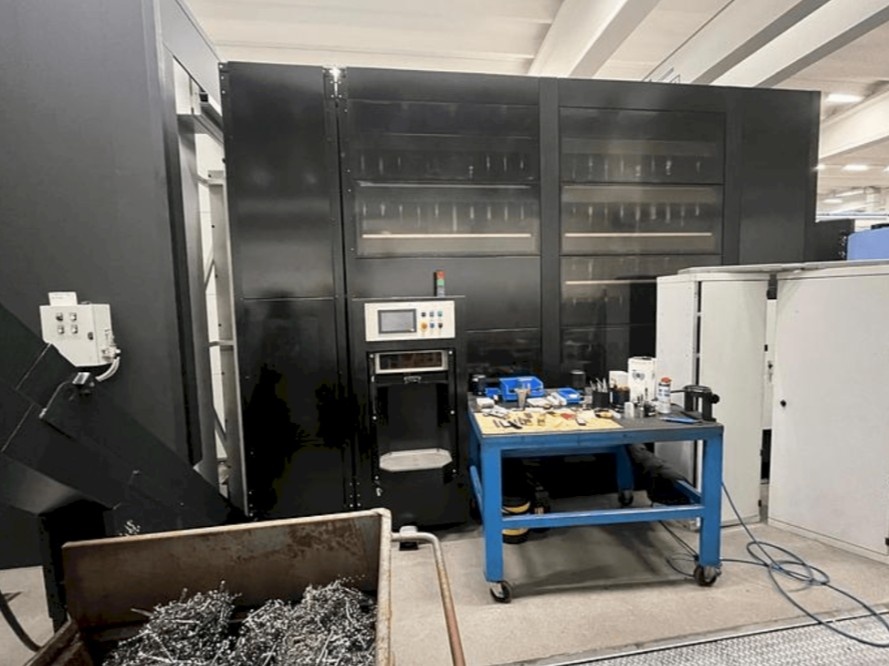

Maximum warehouse capacity 180
Spindle attachment (chuck) HSK 63/100
High pressure system through the spindle 40

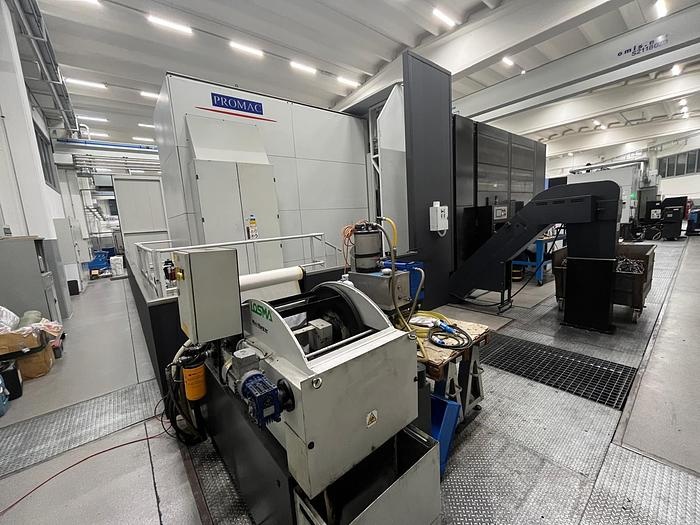

Chip conveyor Yes
5-axis continuous package Yes
Создано 20.03.2025 Изменено 20.03.2025
