WEINIG Unimat U 23 four-side planer Б/У - Продам в Lezno

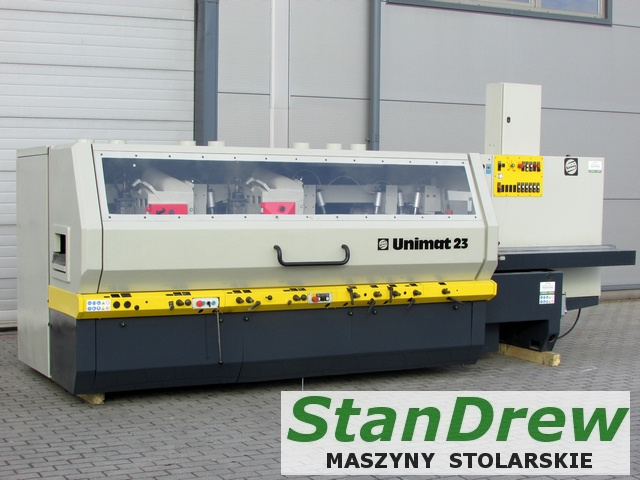

WEINIG Unimat U 23 four-side planer

– German production

– DTR

– for wet wood

– hydrohebel

TECHNICAL PARAMETERS:

planing width 230 mm

planing height 160 mm

pulling rollers in the countertop

diameter of spindles 1-4 - 40 mm

spindle diameter 5-6 - 50 mm

1 lower spindle 7.5 kW

2 right spindle 7.5 kW

3 left spindle 7.5 kW

4 upper spindle 7.5 kW

5 lower spindle 7.5 kW

6 upper spindle 7.5 kW

feed motor power 4 kW

feed smoothly adjustable on the inverter 5-26 m/min

jointers on the last two heads

five upper steel pulling rollers

four upper rubber pulling rollers

four rollers in the tabletop pulling

pneumatic pressure

feed on cardan shafts

electric brakes

electric height adjustment

pre-top length 1950 mm

diameter of connectors 140 mm

machine dimensions (length/width/height) 685 / 230 / 230 cm

weight 4000 kg
