Продам WEINIG QUATTROMAT 23 V four-side planer Б/У в Lezno

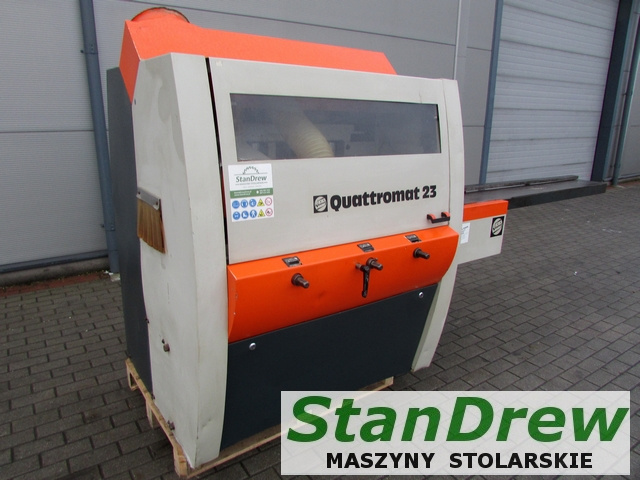

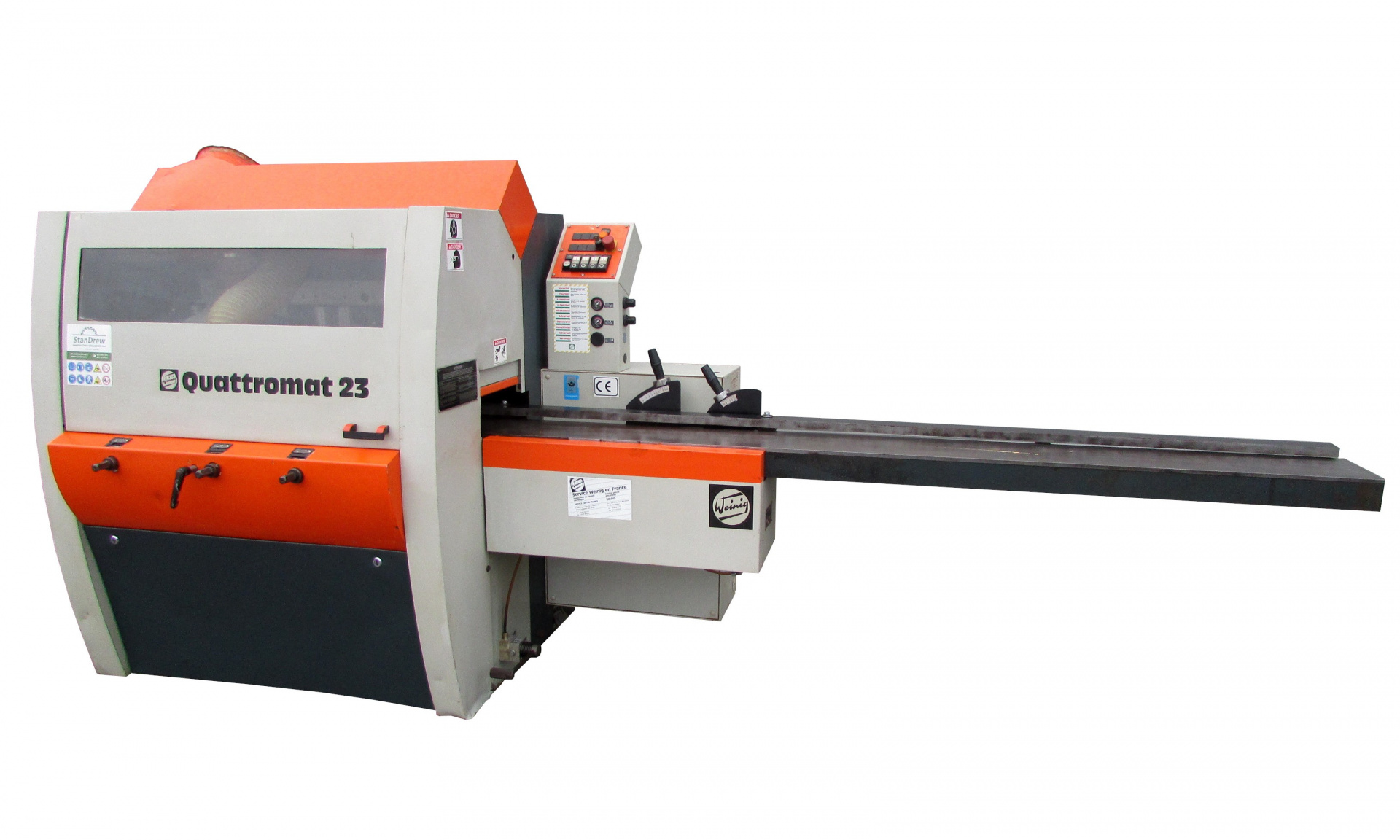

WEINIG QUATTROMAT 23 V four-side planer

– German production

– year of production 1999

TECHNICAL PARAMETERS:

planing width 230 mm

planing height 120 mm

spindle diameter 40 mm

feed 10 m/min

power of feed motors 3 x 0.85 kW

first lower spindle 4 kW

second right spindle

third left spindle 7.5 kW

fourth upper spindle 5.5 kW

max. diameter of horizontal / vertical tools 140 mm / 180 mm

two upper steel pulling rollers

one upper rubber pulling roller

one rubber roller in the countertop

central lubrication of the countertop

tabletop length 2465 mm

pneumatic clamps

upper head shoe

spigot diameter 250 mm

machine dimensions (length/width/height) 360 / 140 / 175 cm

weight ~ 1000 kg
