Weinig Hydromat H25N four-sided planer with 100 m/min feeder Б/У - Продам в Lezno



Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder Weinig Hydromat H25N four-sided planer with 100 m/min feeder
Цена
77 650
Lezno (Польша)
Состояние: Б/У
Год изготовления: 1991
Контакты
StanDrew
Michał Kasjaniuk

StanDrew

Польша, Pomorskie, Gdansk, Mojusz 51А


Детальное описание

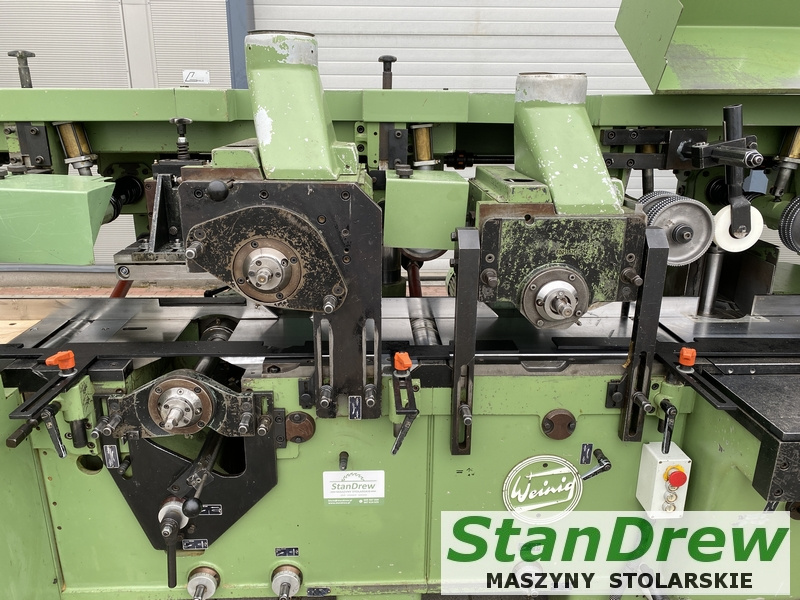

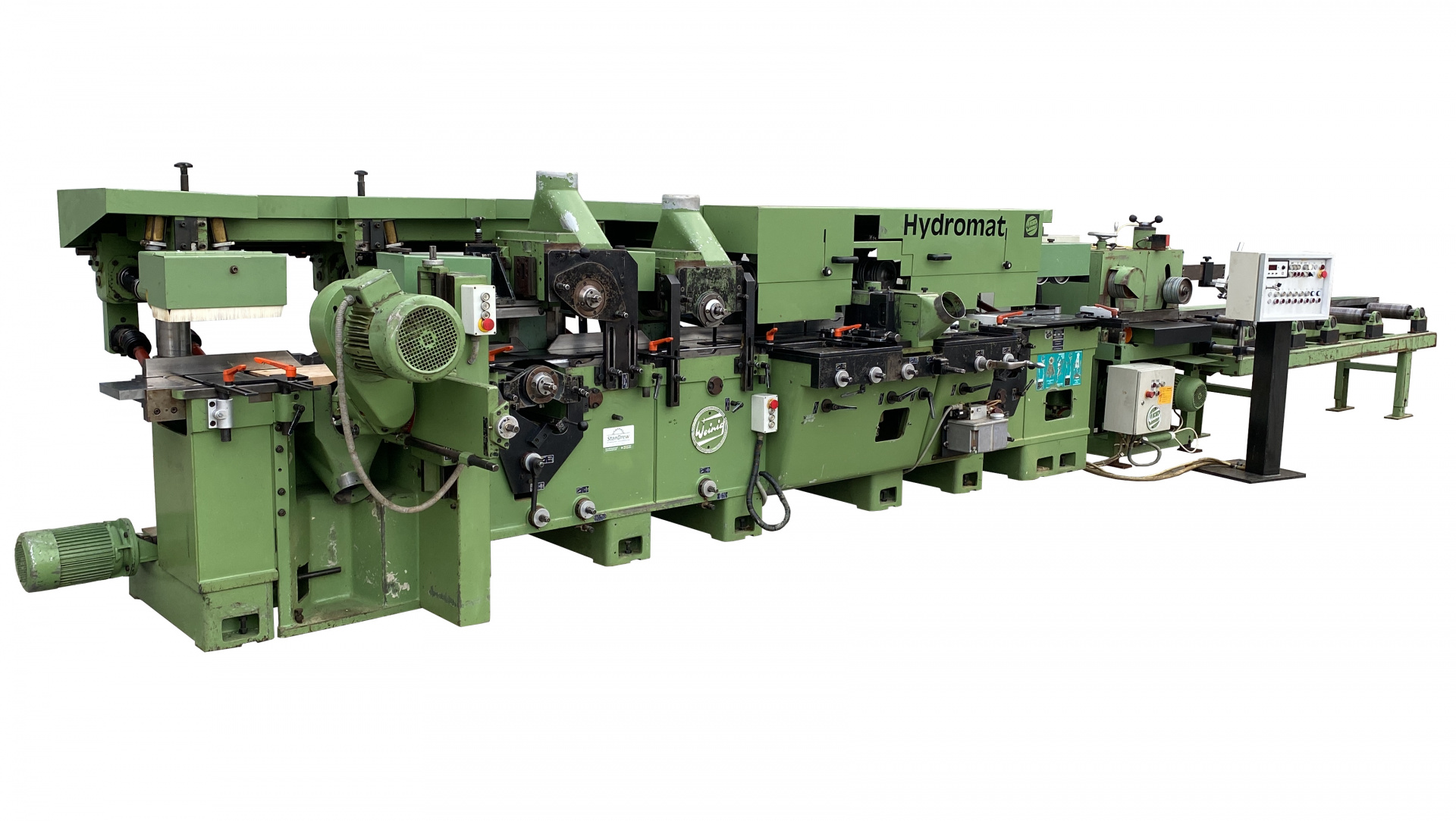

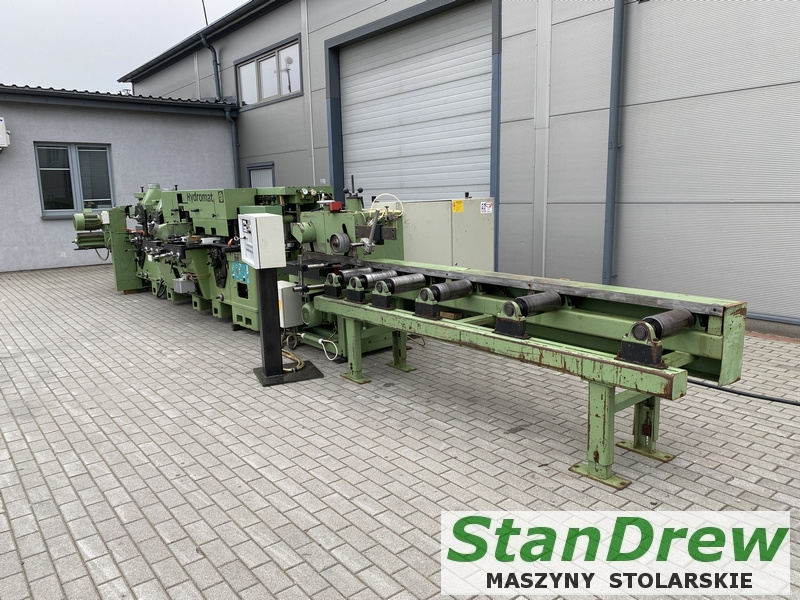

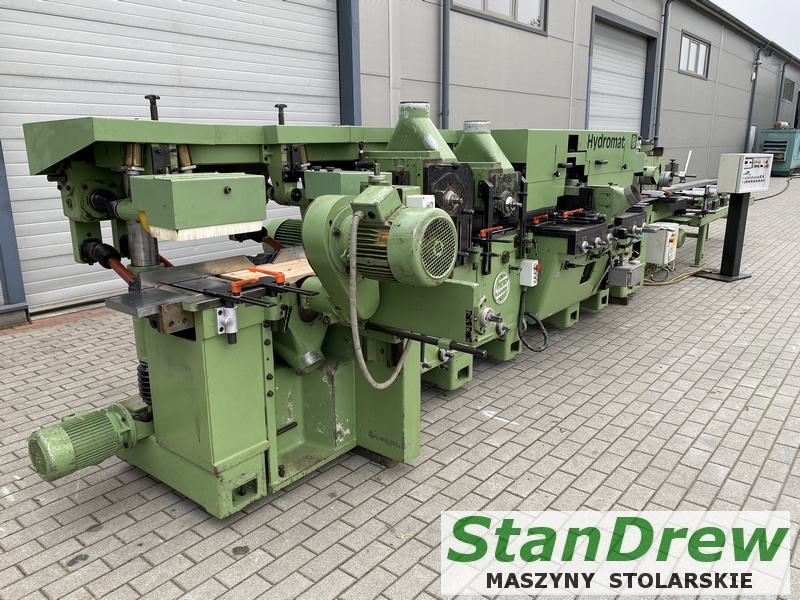

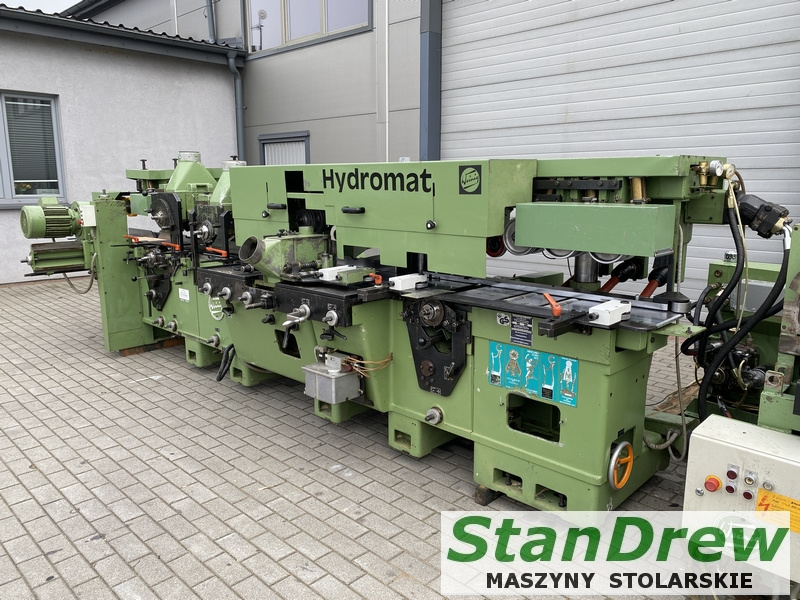

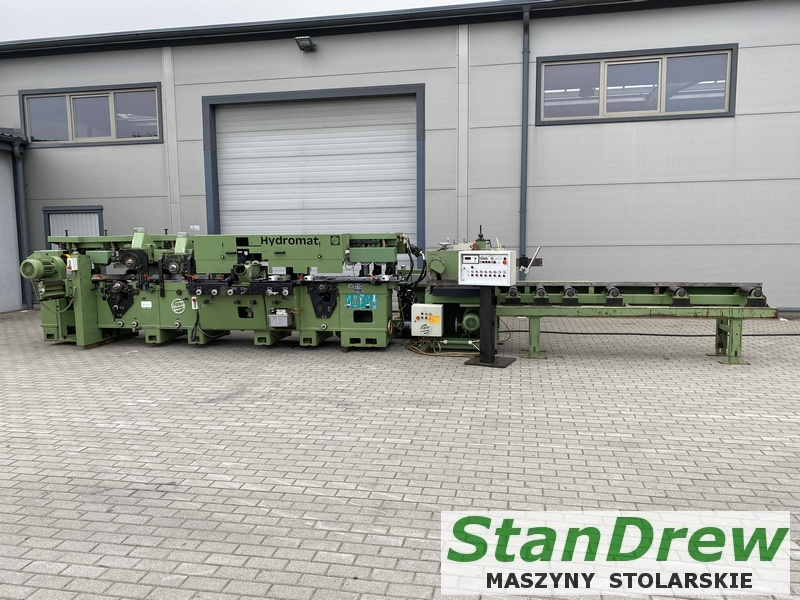

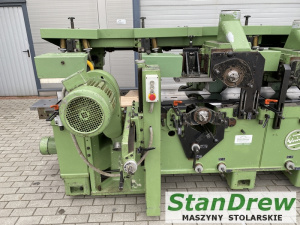

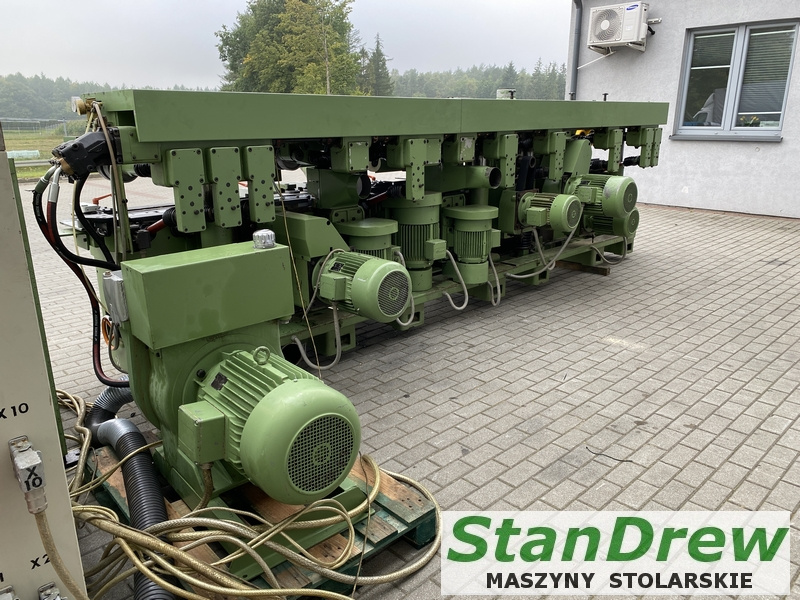

Weinig Hydromat H25N four-sided planer with 100 m/min feeder


- German production

- hydraulic feed up to 100 m/min

- for wet wood

- feeding table


TECHNICAL PARAMETERS:

planing width 250 mm

planing height 190 mm

spindle diameter 50 mm

electric height adjustment

1 lower spindle 15 kW

2 right spindle 7.5 kW

3 left spindle 15 kW

4 right spindle 7.5 kW

5 upper spindle 7.5 kW

6 upper spindle 15 kW

7 lower spindle 7.5 kW

8 universal spindle 1800 7.5 kW

feed smoothly adjustable up to 100 m/min

feed pump motor power 22 kW

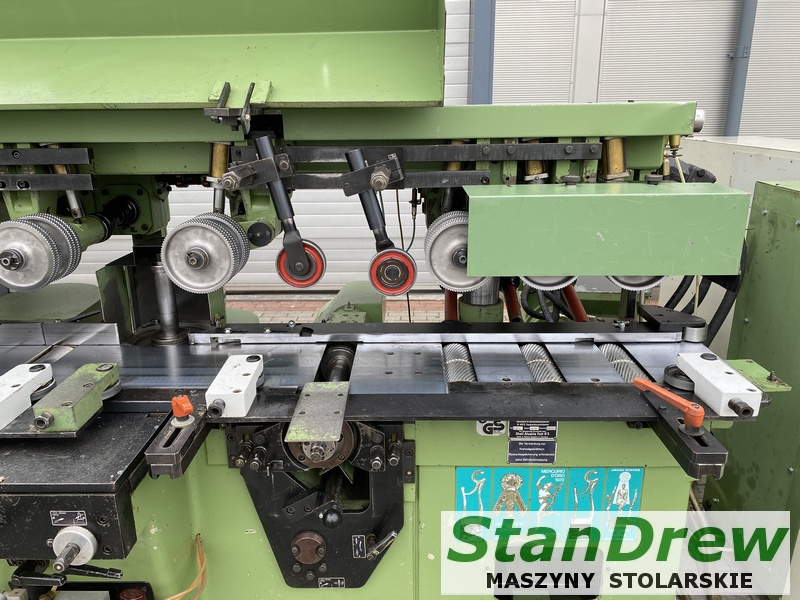

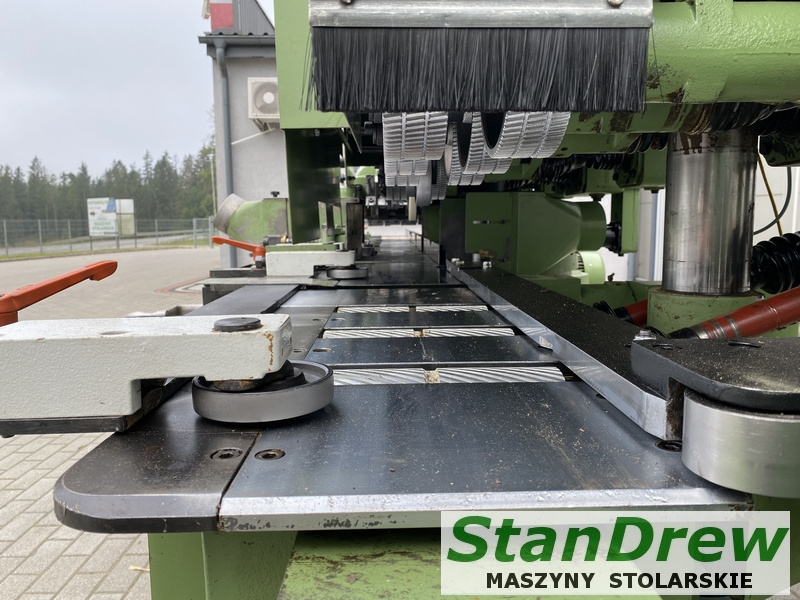

nine rollers in the table top, three of which are in front of the first head

seven upper steel pulling rollers

four upper rubber pulling rollers

pneumatic pressure

jointer on 1-6-7 spindle

automatic lubrication of the countertop

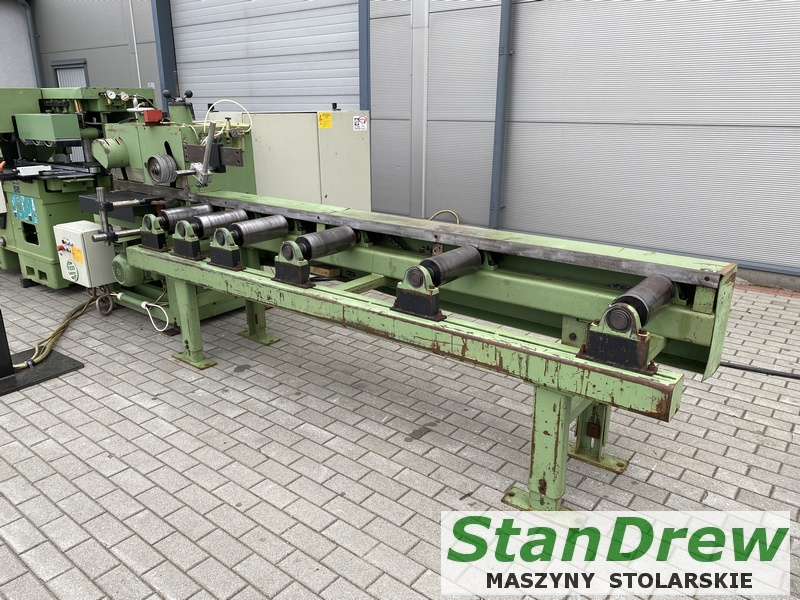

feeding table 3000 mm

speed smoothly adjustable up to 100 m/min

two upper pneumatic rollers

six lower pulling rollers

minimum material length 650 mm


Transport dimensions

11000x2400x2000 mm

weight 9 tons

Создано 26.01.2024 Изменено 26.01.2024

4-сторонний деревообрабатывающий станок
