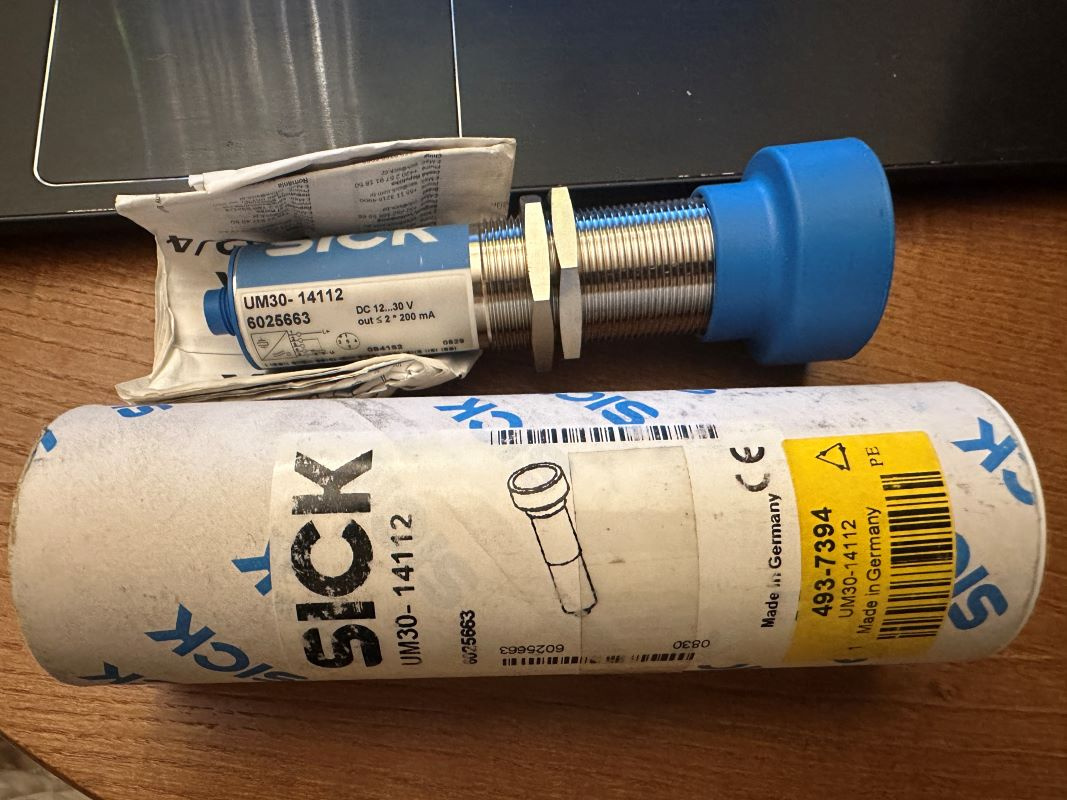

SICK UM30-14112 Ультразвуковой датчик - Продам в Бишкеке
Производитель
SICK (Германия) Цена
25 000
В наличии
Бишкек (Кыргызстан)
Состояние: Новый
Контакты
Детальное описание
| Product features | |||
| Series: | UM30 | ||
| Scanning range min ... max: | 350 mm ... 5,000 mm | ||
| Ultrasonic frequency: | 120 kHz | ||
| Number of switching outputs: | 2 | ||
| Analogue output: | 0 | ||
| Signal voltage PNP HIGH: | Vs - 2 V | ||
| Output current max.: | 500 mA | ||
| Scanning range max.: | 350 mm ... 5,000 mm | ||
| Technology: | Ultrasonic sensor | ||
| Distance from ... to: | 350 mm ... 5,000 mm | ||
| Switching outputs: | PNP, Q1 a. not Q1, Q2 a. not Q2 | ||
| Technical data | |||
| Length:: | 135.5 mm | ||
| Thread size: | M30 x 1.5 | ||
| Supply voltage min ... max: | DC 12 ... 30 V | ||
| Resolution: | 1 mm | ||
| Repeatability: | +/- 0.15% of final value | ||
| Accuracy of sensor element: | <= 2% of final value | ||
| Ripple: | 10 % | ||
| Power consumption: | ≤- 70 mA | ||
| Response time: | 180 ms | ||
| Switching frequency: | 3 Hz | ||
| Hysteresis: | 50 mm | ||
| Standby delay: | 2 s | ||
| Enclosure rating: | IP 65 | ||
| Ambient operation temperature, min ... max: | -20 °C ... +70 °C | ||
| Housing material: | Brass nickel-plated, plastic | ||
| Short-circuit protected:: | 1 | ||
