Продам QK1319 Токарно-винторезный станок с ЧПУ в Nanjing
+8615852913948
Nanjing Beyond Machinery Co.,Ltd.
Китай, Jiangsu, Nanjing, No.59, Wangqiao Road, Xiongzhou Street, Liuhe District
Детальное описание
ITEM | QK1313 | QK1319 | QK1322 |
Guideway width | 550mm | ||
Max. swing over bed | 630mm | ||
Max. swing over slide | 350mm | ||
Max. workpiece length | 1500mm/3000mm | ||
spindle thru-hole | Φ130mm | Φ200mm | Φ225mm |
Max. Pipe external diameter | 126 mm | 196 mm | 219 mm |
Number of spindle speed | 18 steps | 12 steps | 12 steps |
Range of spindle speed | 16~820 r/min | 36~450 r/min | 36~450 r/min |

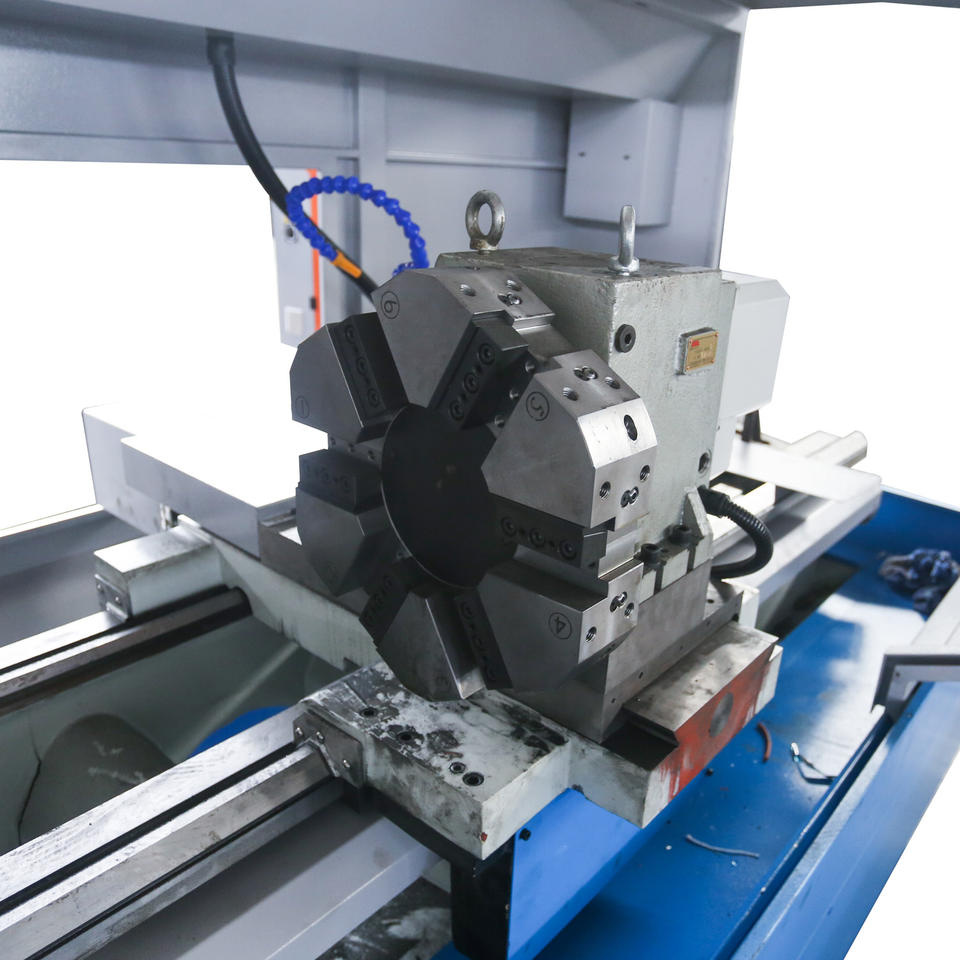

Tool post style | Vertical 4 Station(standard) | ||
Thread range and number by British system | 28~2/40 types | ||
Thread range and number by metric system | 1~14/24 types | ||
Motor Power | 11kw | ||
Controller | KND/FANUC/SIMENS | ||
Max. processing length of taper ruler | 500 mm | ||
Rapid feedrate speed | 4000mm/min | ||
Repeated positioning accuracy | ±0.002 | ||
machining accuracy | IT7 | ||
Workpiece surface roughness | Ra1.6 | ||
Bed quenching hardness | HRC52 | ||
Machine net weight | 4200kg | 4400kg | 4500kg |
