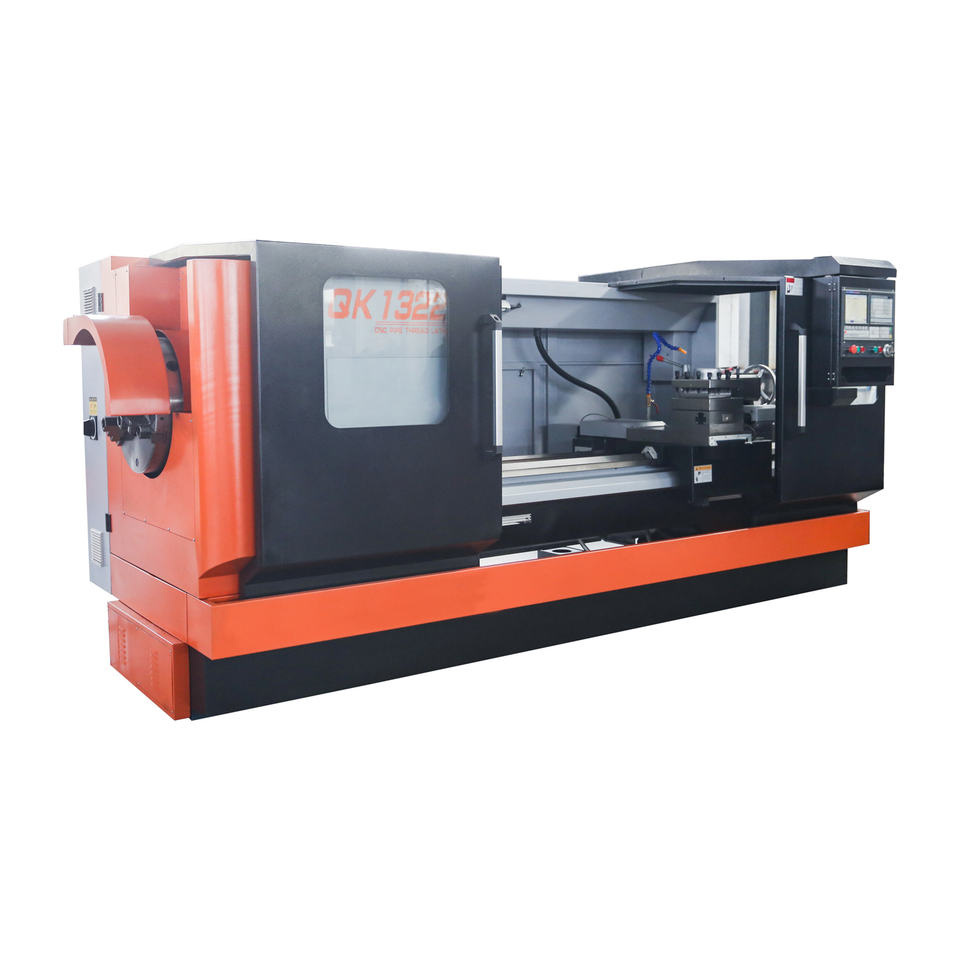

Продам QK1313 Токарно-винторзеный станок с ЧПУ производства Китая в Nanjing
+8615852913948
Nanjing Beyond Machinery Co.,Ltd.
Китай, Jiangsu, Nanjing, No.59, Wangqiao Road, Xiongzhou Street, Liuhe District
Детальное описание
SPECIFICATION | Units | QK1313 |
Manual | ||
Swing over bed | mm | 630/800 |
Swing over cross slide | mm | 340/520 |
Distance between centers | mm | 1000/1500/3000 |
Pipe threading range | mm | 30-126 |
Guideway width | mm | 550 |
Max. load capacity | T | 3 |
Spindle bore | mm | 130 |
Spindle speed steps | - | VF. 3 steps |
Spindle speed range | rpm | 30-720 |

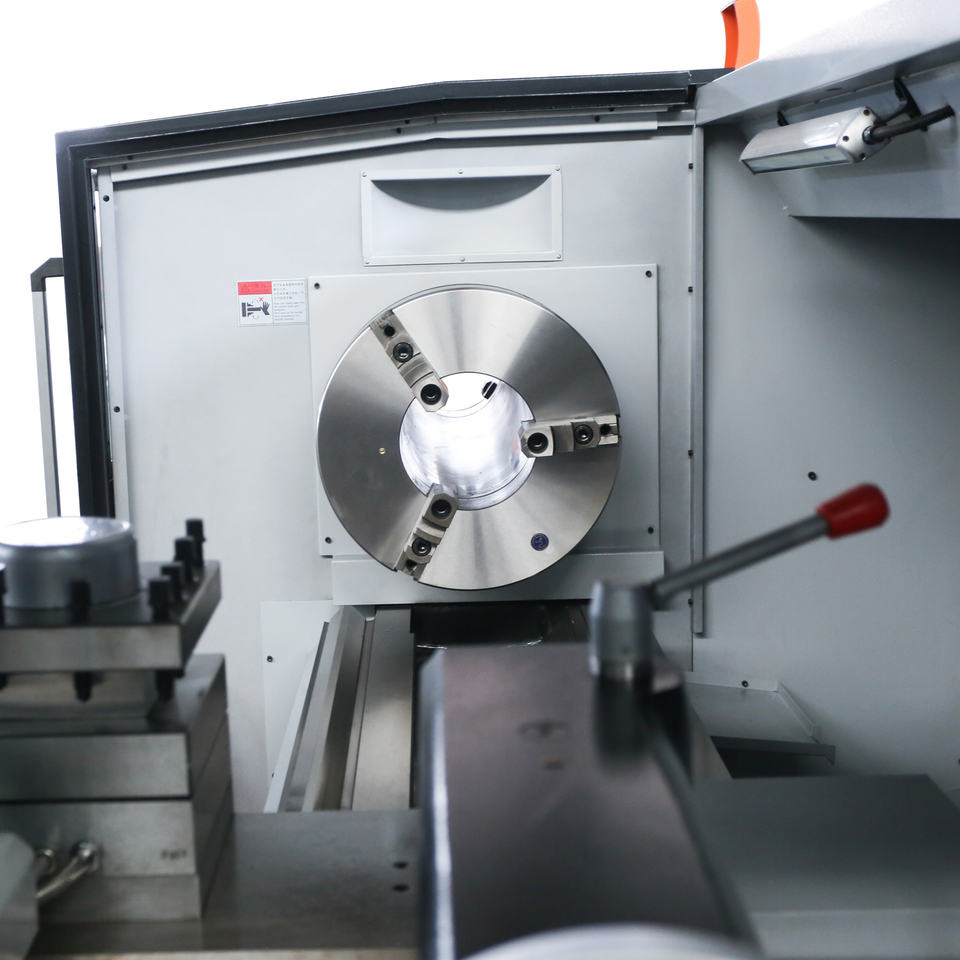

Chuck | mm | φ400 3-jaw manual |

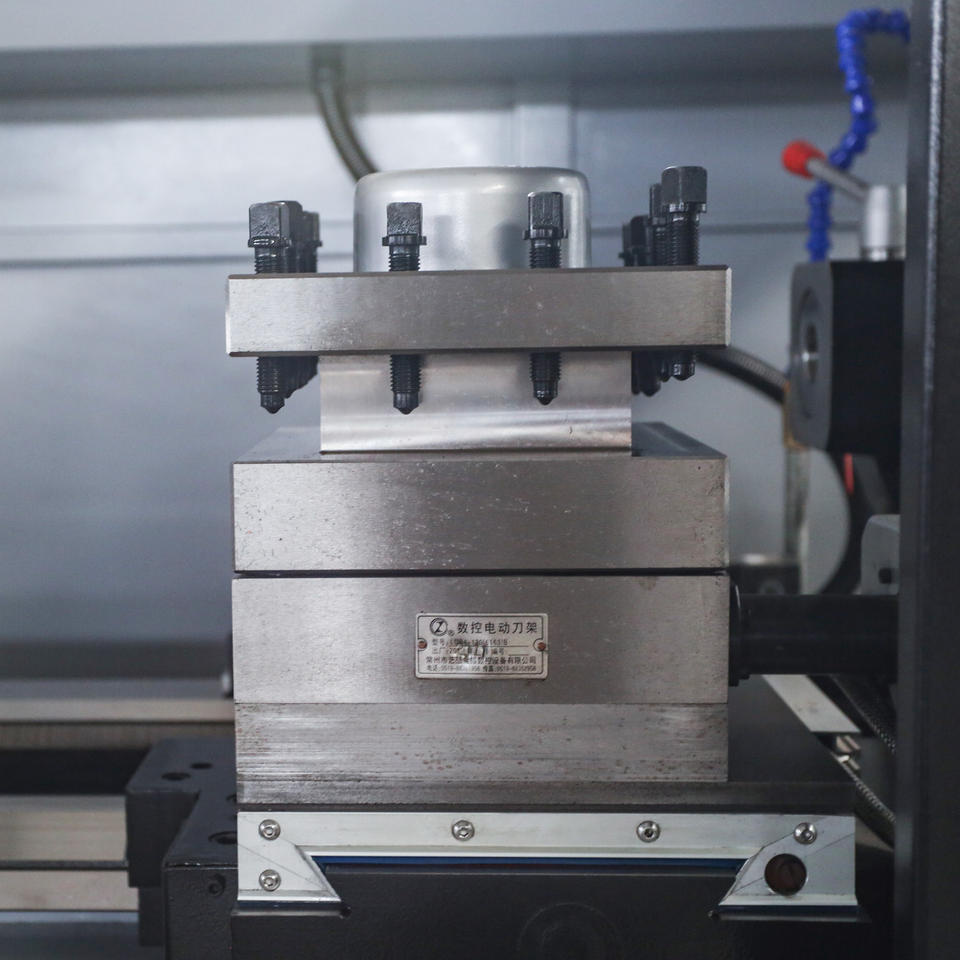

Turret/tool post | - | CNC turret 4 position |
Tool shank size | mm | 32 x 32 |
X axis travel | mm | 320/420 |
Z axis travel | mm | 850/1350/2850 |
X axis rapid traverse | mm/min | 4000 |
Z axis rapid traverse | mm/min | 6000 |
Tailstock quill diameter | mm | φ100 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 250 |
Main spindle motor | kW | 11 |
Coolant pump motor | kW | 0.125 |
Weight for 1000 | kg | 4500 |
Weight for 1500 | kg | 5000 |
Weight for 3000 | kg | 6000 |
Dimension for 1000 | mm | 3300x1800x1850 |
Dimension for 1500 | mm | 3800x1800x1850 |
Dimension for 3000 | mm | 5300x1800x1850 |
