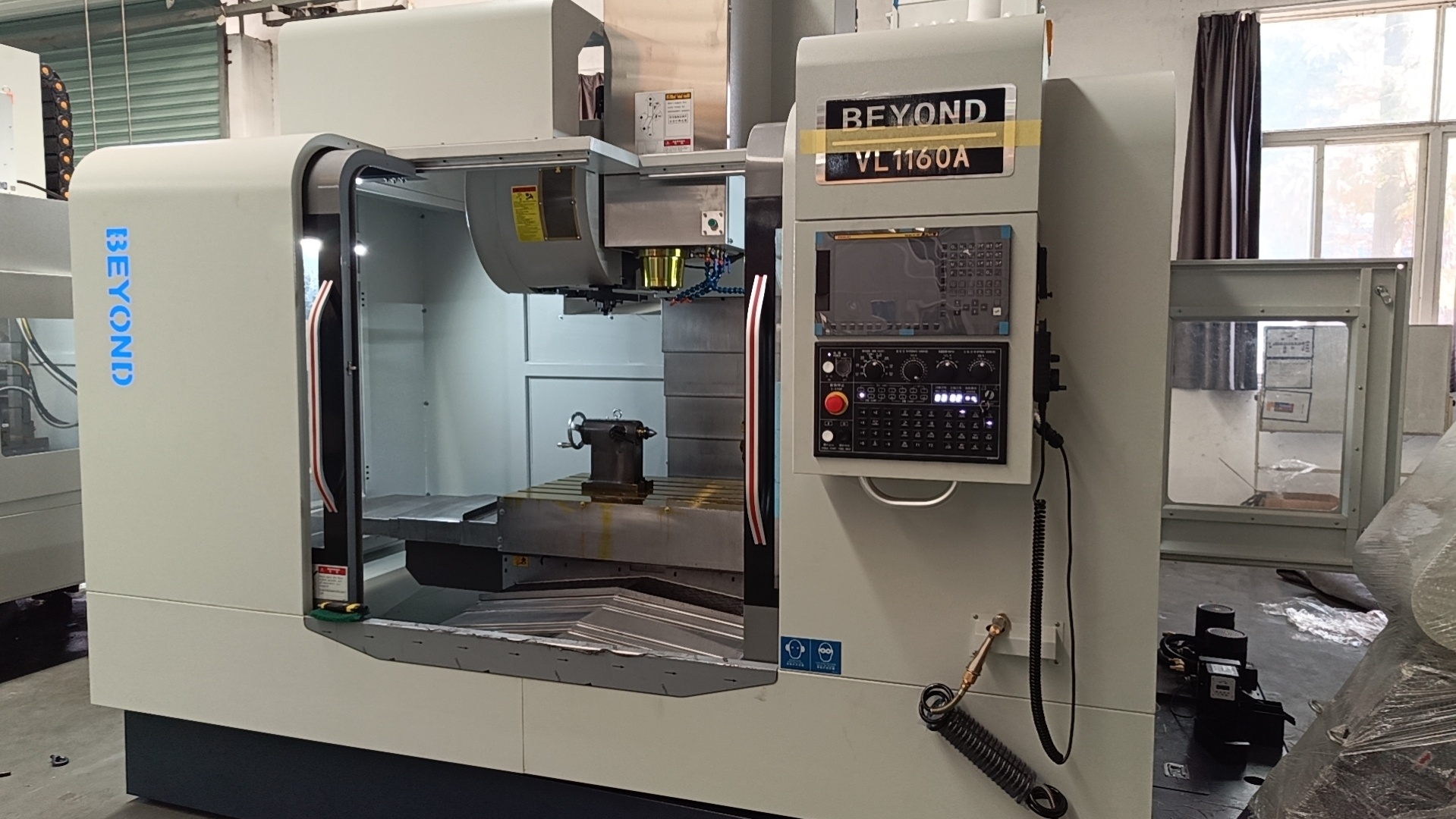

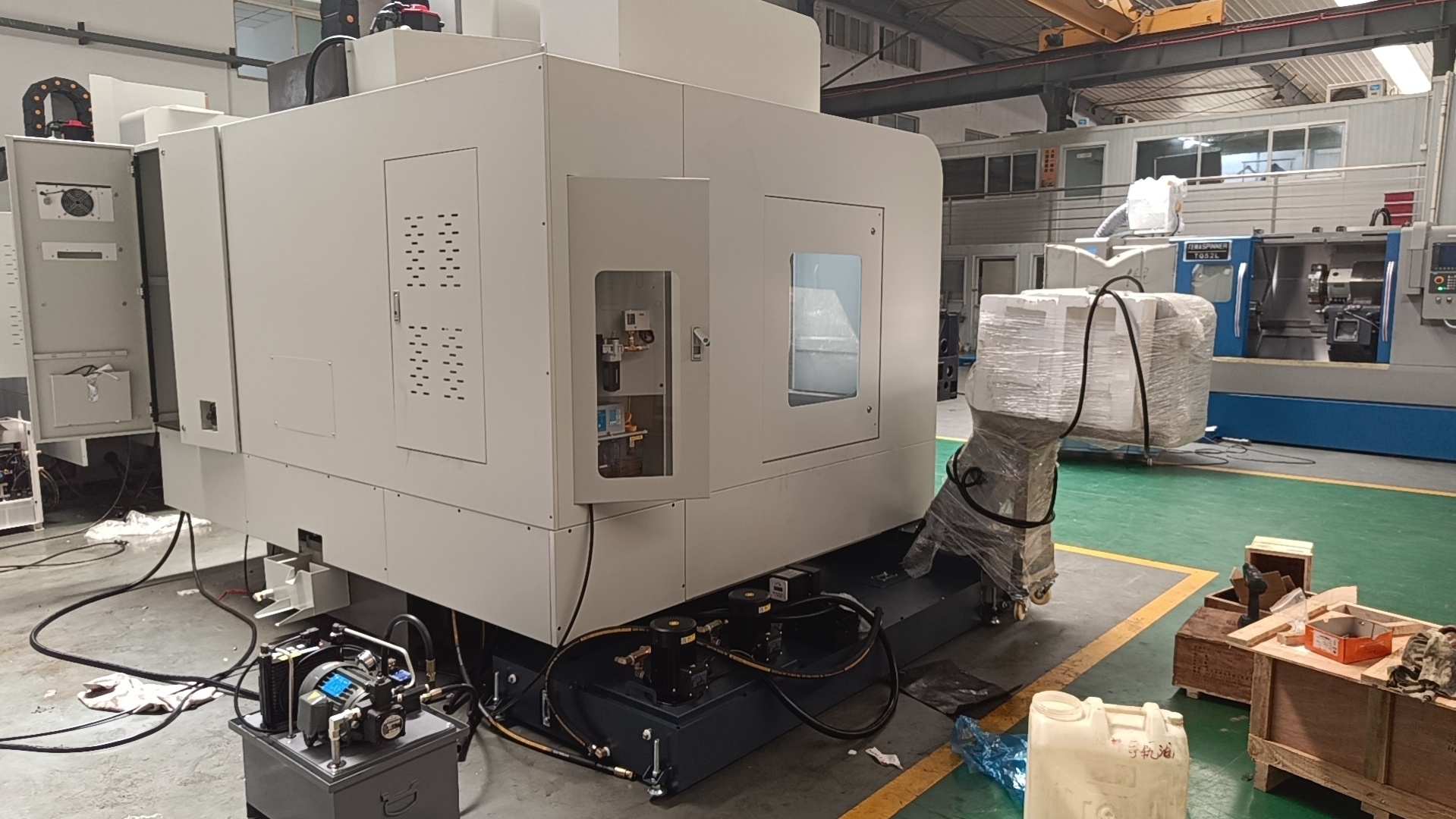

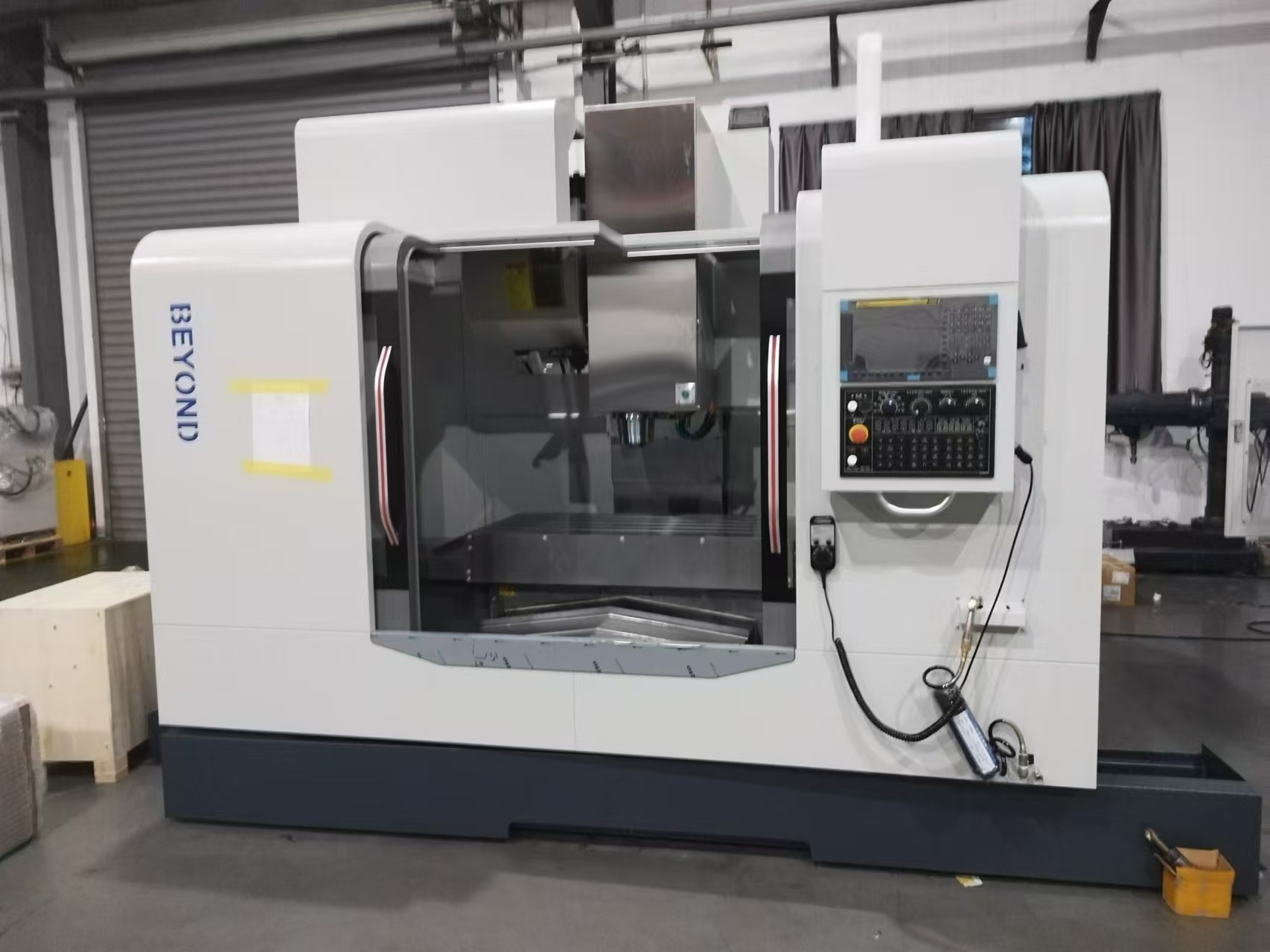

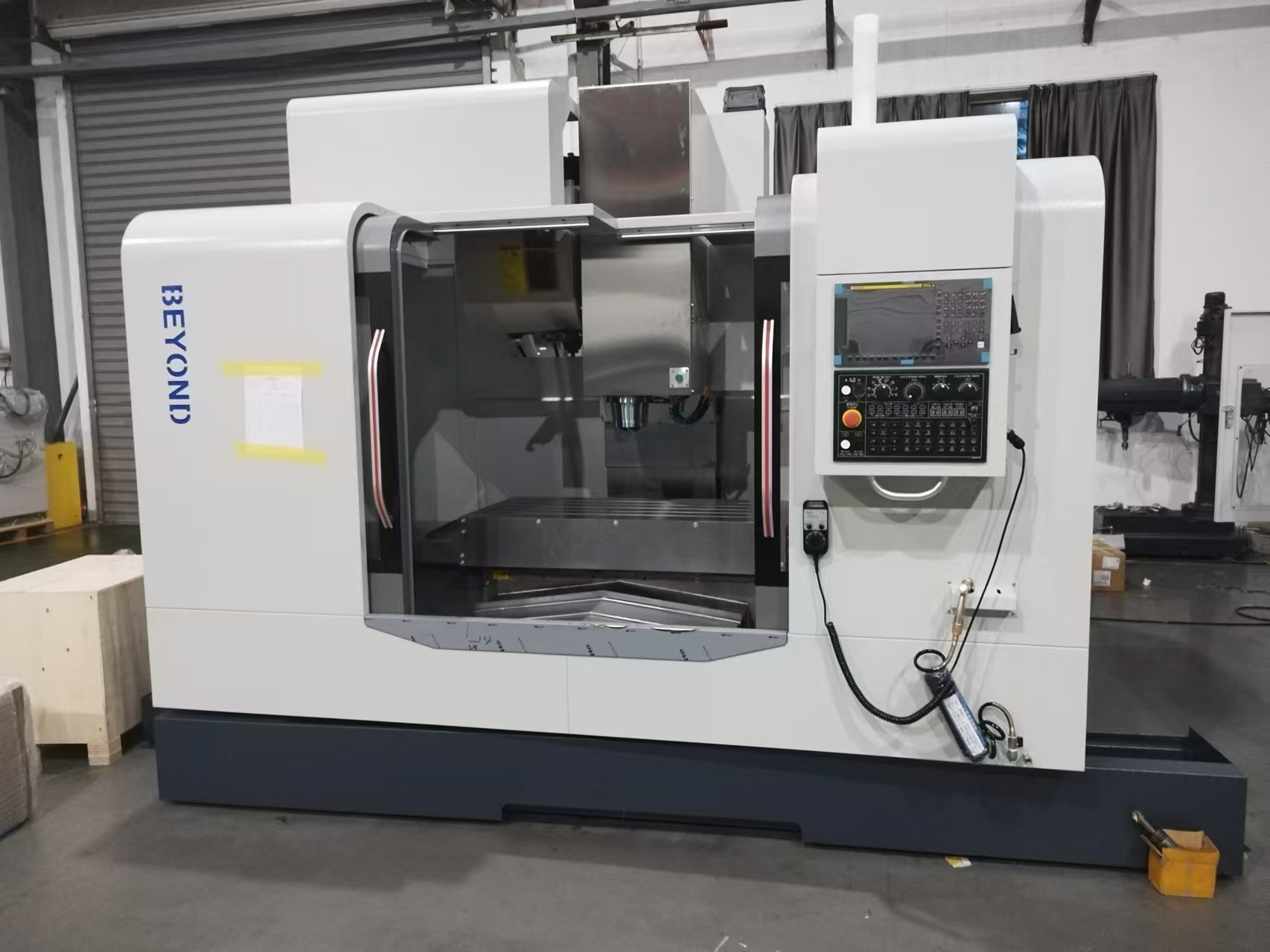

Продам VMC1270 вертикальный обрабатывающий центр с ЧПУ в Nanjing
+8615852913948
Nanjing Beyond Machinery Co.,Ltd.
Китай, Jiangsu, Nanjing, No.59, Wangqiao Road, Xiongzhou Street, Liuhe District
Детальное описание
specifications | unit | VMC1270 | VMC1370 |
Table size | mm | 1300x710 | 1400x700 |
Table maximum load | kg | 1000 | 1000 |
X/Y/Z axis travel | mm | 1200x700x700 | 1300x700x700 |
Distance between spindle | mm | 767 | 785 |
Distance between spindle end | mm | 130-830 | 150-800 |
X/Y/Z max. feed speed | mm/min | 10000 | 10000 |
X/Y/Z max.rapid traverse | m/min | 24/24/18 | 20/20/15 |
Max. spindle speed | r/min | 8000 | 8000 |
Spindle taper | BT50 | BT50 | |
Spindle motor | kw | 11/15 | 11/15 |
X/Y/Z axis servo motor | kw | 4/4/4 | 4/4/4 |
X/Y/Z motor connection | direct | direct | |
X/Y/Z guide rail form | Linear rails | Linear rails | |
T slot(number-width-pitch) | 5-18-115 | 5-18-115 | |
Repeat positioning accuracy | mm | ±0.004 | ±0.004 |
Tools type | arm | arm | |
Tool magazine capacity | arm:24 | arm:24 | |
Max. tool length | mm | 350 | 350 |
Electric capacity | KVA | 22 | 22 |
Machine dimension | mm | 3800*3000*2650 | 3600*3000*2700 |
Machine weight | kg | 11000 | 12000 |
