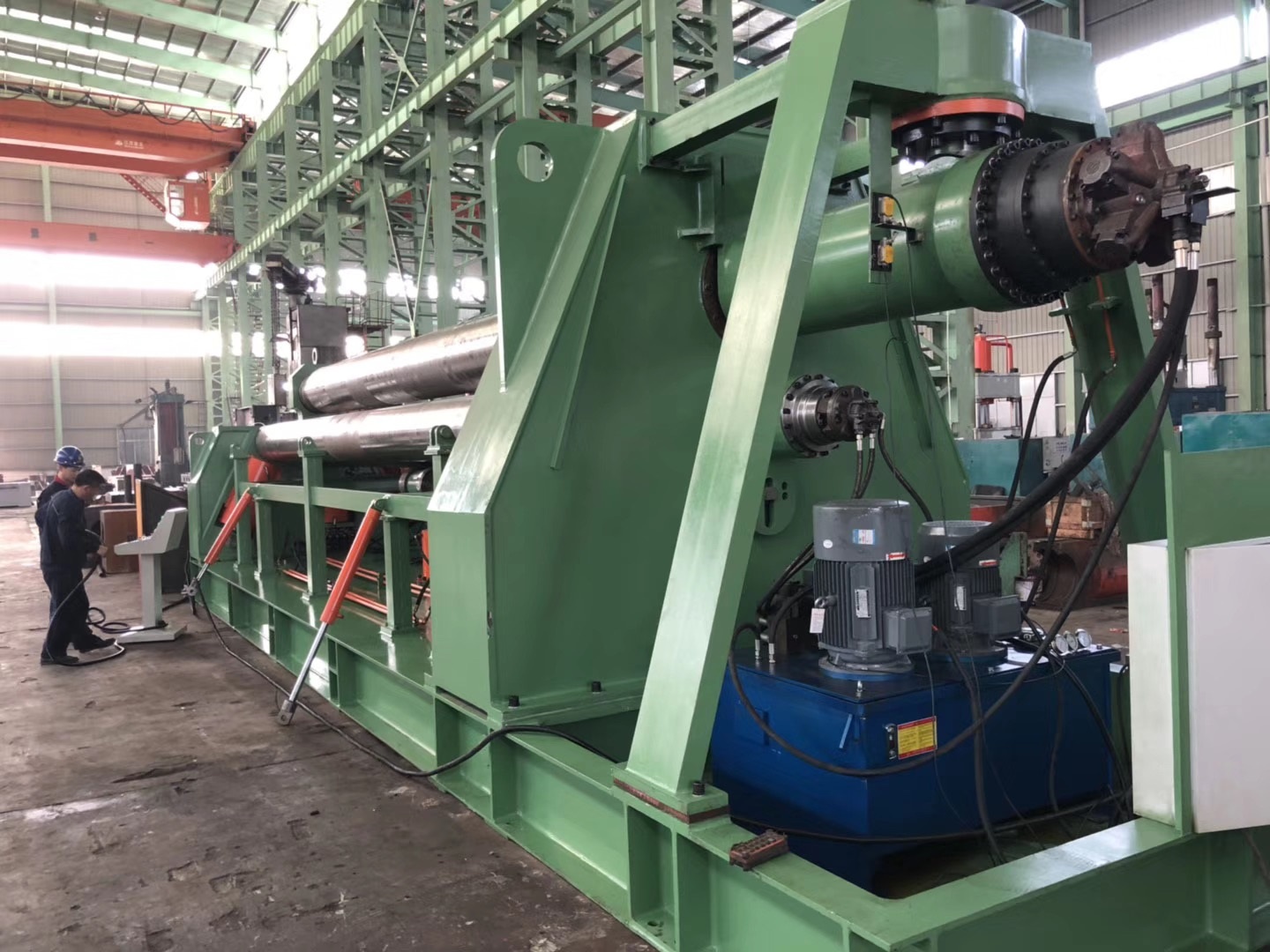

Продам Вальцы 6100 мм на 50-60 мм 3 месяца производства в Shanghai
+7 995 299-81-12
Индия, Тамилнад, Мадурай, Survey # 500/5 to 8, Amarambedu Village, Kundrathur PO, Chennai - 600069, India
Детальное описание
| 1 | Material Yield Limit | <245MPa |
| 2 | Max. bending thickness | 60mm (<245MPa) |
| 3 | Max. pre-bending thickness | 50mm (<245MPa) |
| 4 | Min. reel diameter with Max. size | 1500mm |
| 5 | Max. bending width | 6100mm |
| 6 | Max. Working roller length | 6200mm |

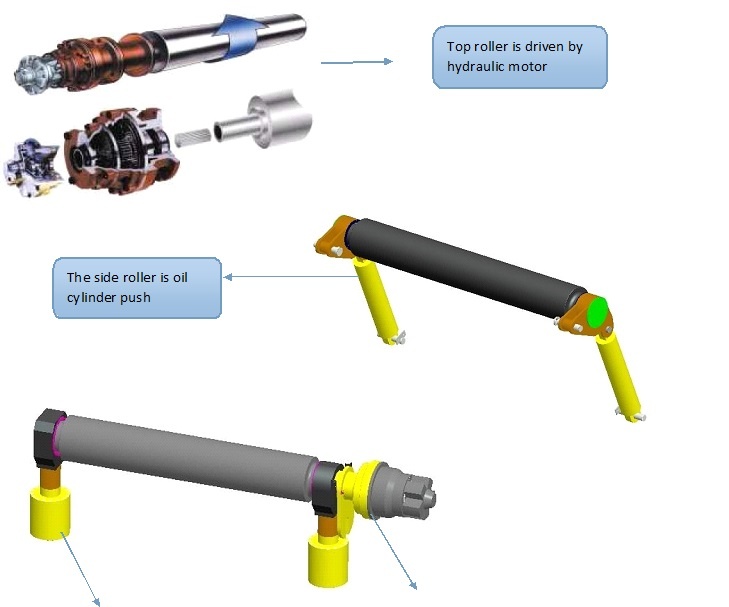

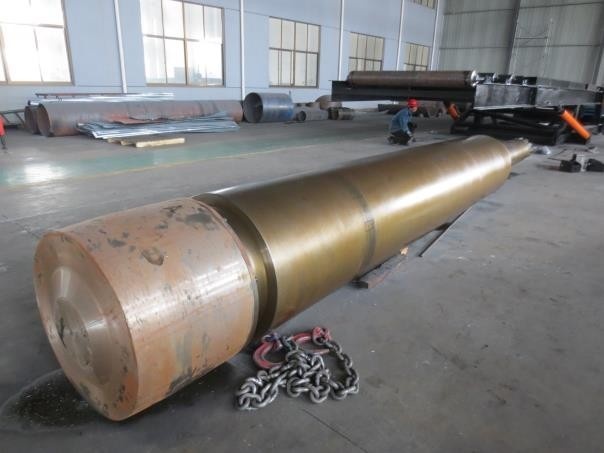

| 7 | Top roller diameter | 920mm |
| 8 | Bottom roller diameter | 850mm |
| 9 | Side roller diameter | 700mm |
| 10 | Bending speed | 4.0m/min |
| 11 | Driving mode | Hydraulic |
| 12 | Lifting mode of bottom roller | Hydro motor |

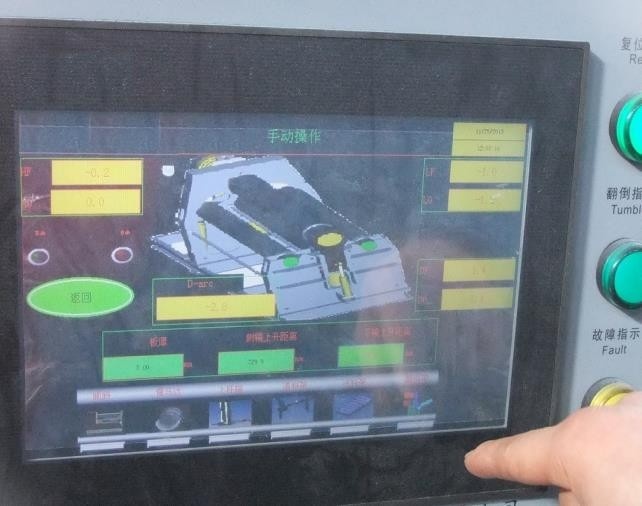

| 13 | Control mode | NC |
| 14 | Display of position and displacement | LCD |
| 15 | Lifting synchronous precise | ±0.2mm |

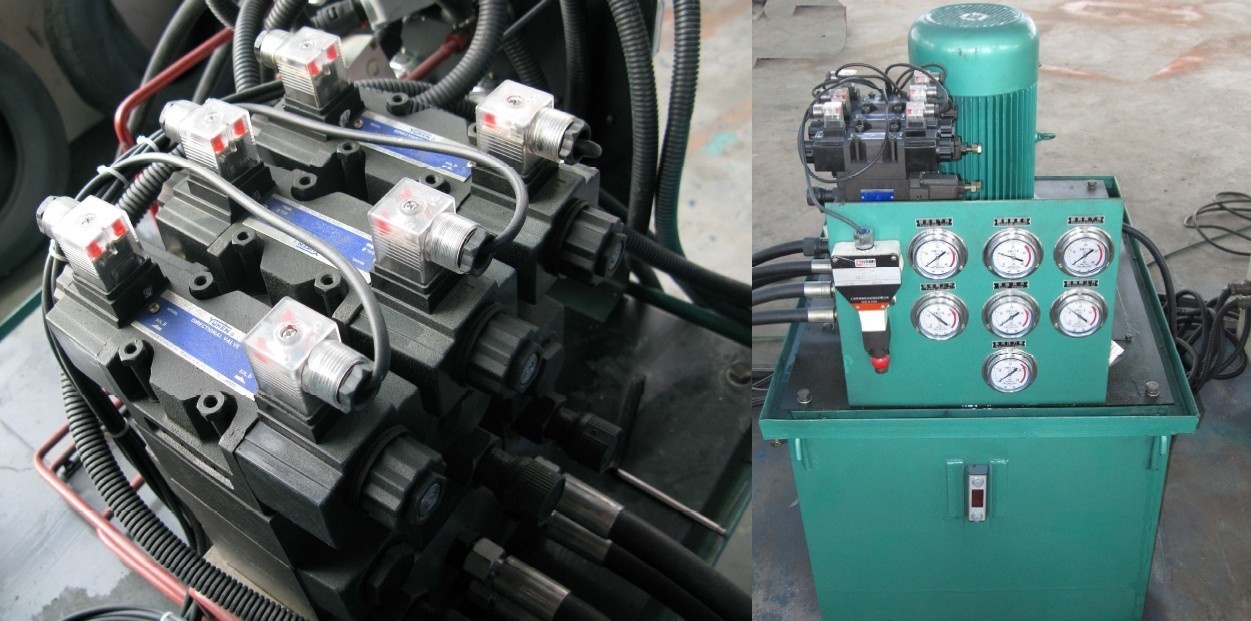

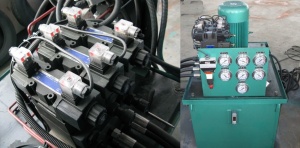

| 16 | Hydraulic system working pressure | 19.5Mpa (MAX) |
| 17 | Main Power source | 45KWx2 |
| 18 | Up roller driving power | 85000N.M |
| 19 | Bottom roller driving power | 8500N.M |
